NLT12E

Description

Smart Technology

Agile Maneuverability

In awe of the world’s accelerating Lithium technology development, the NLT12E is the newest innovative creation built to establish the trend in revolutionizing how a conventional palletized goods are handled, transferred and transported in this modern material handling era.

Constructed in its lightweight chassis and stat of the art technology that utilizes a 24V Lithium operating system, the NLTE has bundled the best of both worlds qualities – SMART & AGILE, to satisfy the material handling industry needs.

The NLT12E SMART charging capability allows the battery to achieve FULL charged condition within 2.5 charging hours, can deliver up to a maximum 3 hours continuous work cycle. The truck’s maneuvering controls are also electronically intergrated that allows tight turning radius up to 1390mm, is believed to be the NEXT generation pallet truck evolved to drive productivity in the most space demanding environment.

USB Key Switch

• World’s smallest USB smart key on switch
• Limit and prevent unauthorized access to the truck

Safety & Protection System

• Automatic power off function if left idle with power on for 20 minutes
• Low voltage protection system automatically limit travel speed to indicate immediate charging of the truck when the battery level hits 20% or below

Vivid Digital Display & Controls

• Standard LED indicators displays Battery level, On/Off status, Running Hours, and Fault Code
• Multi-functional electronic control handle to facilitate quick controls

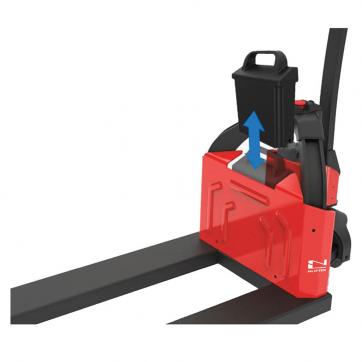

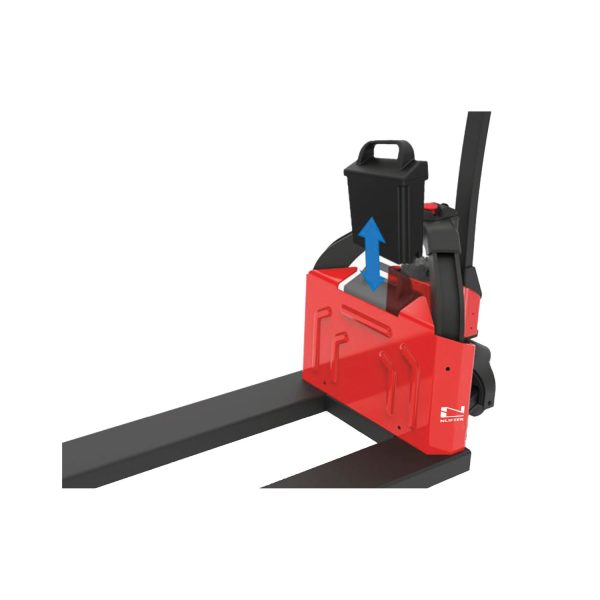

SMART Lithium Technology

• Achieve full battery charge up to 2.5 hrs charging cycle
• Last a maximum 3 hours continuous work cycle per full charge
• World’s lightest lithium battery pack weighs up to 3.7kg
• Advance BMS (Battery Management System) to protect lithium battery

Compact & Light Maneuverability

• Handles up to 1.2T load weight
• Outstanding narrow aisle steering up to 1390mm turning radius
• Enhanced traction mobility using a standard powerful traction motor (0.650KW)
• Outstanding anti-rollback capability on a slope
• Improved tiller arm design with amicably lightweight easy to steer structure
• Industry lightest electric pallet truck weights up to 120kg only (* Inclusive of the battery pack)
