NLT20EA/NLT25EA

Description

Advance & Powerful Designed for Resilient Performance

Available from 2.0T to 2.5T truck chassis model, the NLT-EA series is your optimal choice which possesses the preeminent heavy duty capacity that moves, picks and deliver loads to its designated locations with greater ease, and comfort!

Paired with a high-performance traction battery, the NLT-EA series is capable of working rapidly with an extended work durations can travel up to a maximum speed of 6km/hr. The overall steering control experience is unique in the industry. The operator is allowed to steer the truck while maintaining the tiller arm at an almost vertical angle shortens the overall turning radius even when operating it within a narrow aisle.

Grab yours today and start experiencing the infinite possibilities with the new NLT-EA series!

24/7 Secured

• Exclusive pin-code entry limits any unauthorized usage of the truck

High Performance AC drive system

• Smooth travel speed control up to 6km/hr
• Competitive and powerful 1.1kW rated AC drive motor allows the truck to overcome most terrains with ease

Quick Battery Access

• Easy access to the battery and monitor the battery water level
• Optional side battery change system facilitates safer battery change procedures

Vivid Digital Display & Controls

• Standard LED indicators displays Battery level, On/Off status, Running Hours and Fault Code
• Multifunctional electronic control handle to facilitate quick controls
• Creep speed mode automatically reduce the truck travel speed when the tiller arm is tilted at near neutral position
• Low voltage protection system automatically limit travel speed to indicate immediate charging of the truck when the battery level hits 20% or below

Safe Operation

• Reverse belly button changes the traveling direction immediately upon contact helps to protect the operator from any imminent impact
• Full electromagnetic brakes provide enhanced the braking effect with anti-rollback function even when traveling and stopping on steep ramps
• Low bottom frame design helps to keep operator foot out of the undercarriage and avoid injury
• Optional cold store application available to work at -20 degree Celsius environment

Easy Maintenance and Serviceability

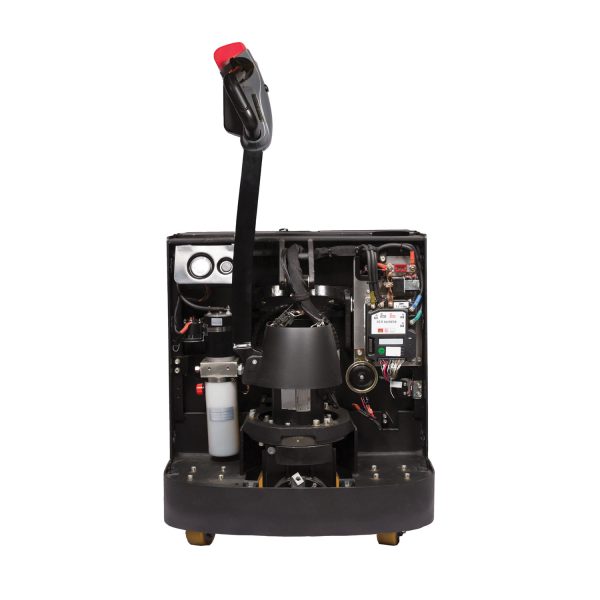

• Hassel free access to the internal key components for quick inspection, maintenance, and replacement works
• Adjustable forks linkages to ensure smooth lifting of the forks
• Quick plug-in fault diagnostics feature
• IP54 ZAPI AC controller offers better protection against water & dust ingression
• High-quality AMP connectors and durable electrical harnesses
