NST14EAS/NST18EAS

Description

ASCEND with force and absolute TOUGHNESS

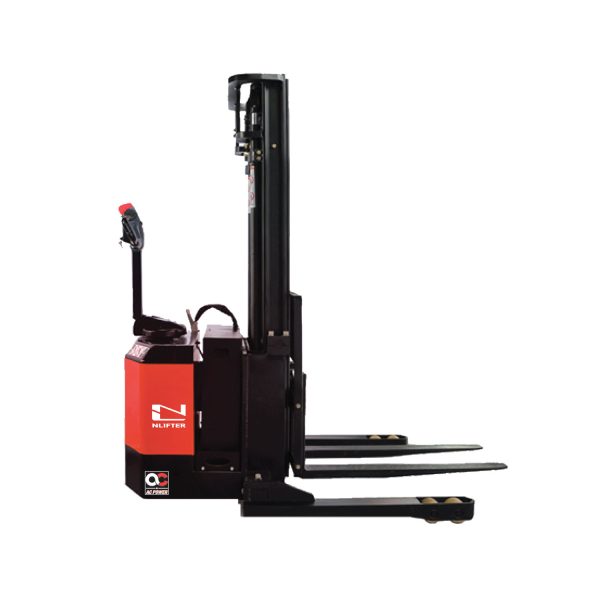

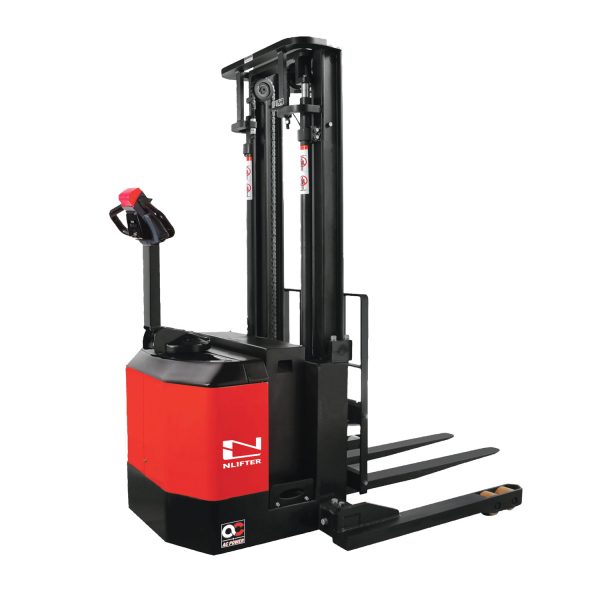

With capacities available in 1.4T and 1.81 the NST-EAS heavy duty series is capable of lifting palletized loads up to a maximum height of 5 meters. With its powerful lift capability, the NST-EAS aims to endow the operator with sufficient durability and agility to handle heavy duty load stacking applications.

The truck is equipped with a multifunctional control handle to allow the operator to multitask while the compact tiller arm efficiently helps to reduce stress on the opera-tor’s arm for over a long period of operating hours.

24/7 Secured

• Exclusive pin-code’ entry limits any unauthorized usage of the truck

High Performance AC drive system

• Smooth travel speed control up to 5.5km/hr
• Competitive and powerful rated AC drive motor performance

Versatile Load Handling

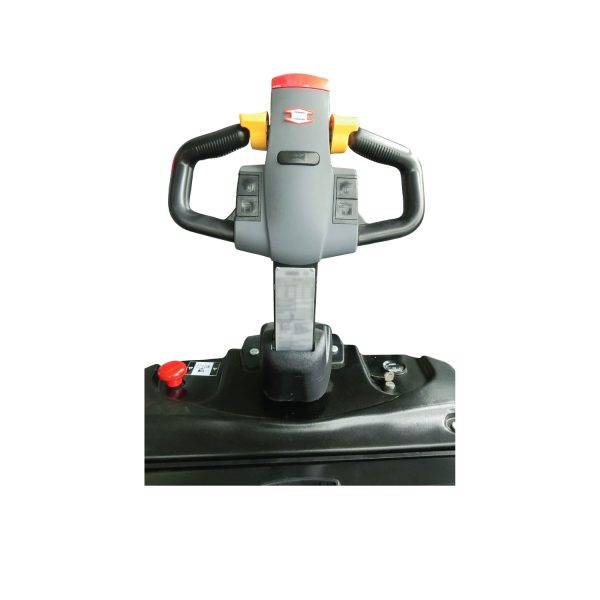

• Multifunctional electronic control handle to facilitate quick controls

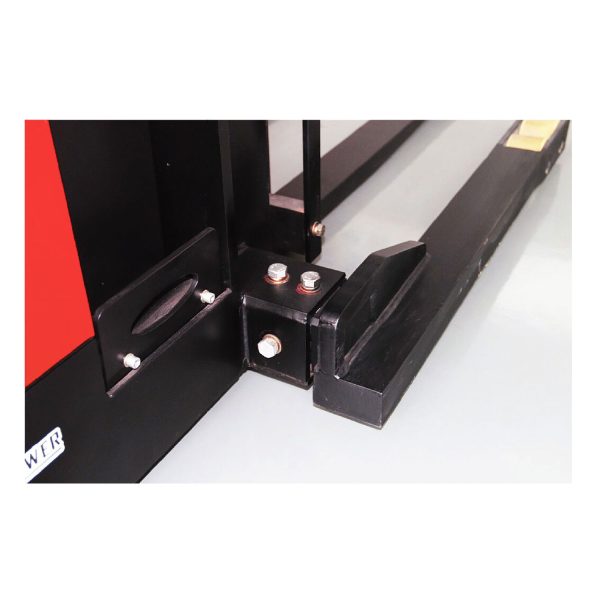

• Various straddle legs width to accommodate different pallet sizes

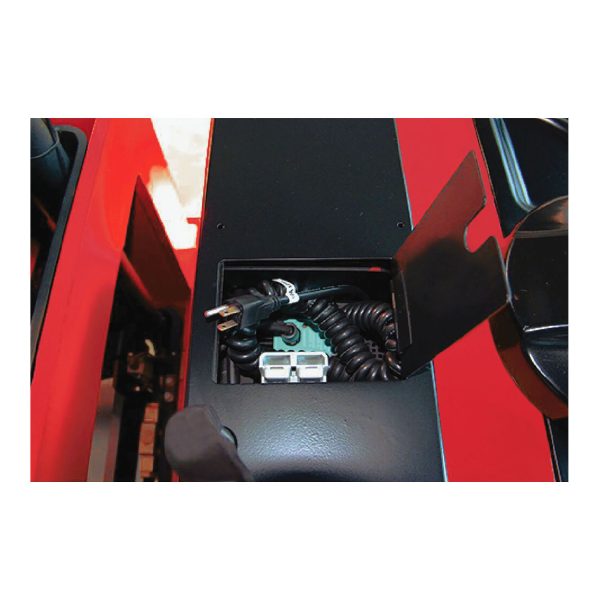

Quick Battery Access

• Top access to the battery for easy monitoring of the battery water level
• Optional side battery change system facilitates safer battery change procedures

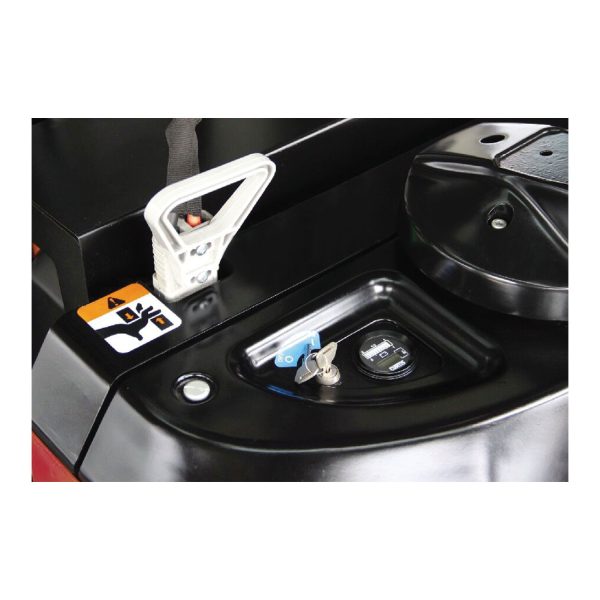

Vivid Digital Display & Controls

• Standard LED indicators display Battery level, On/Off status, Running Hours and Fault Code
• Multifunctional electronic control handle facilitates quick controls over simultaneous lift and travel

Improved Reliability & Maintenance

• Hassel free access to the internal key components for quick inspection. maintenance, and replacement works
• Quick plug-in fault diagnostics feature for easy setting and customization of the truck parameters
• IP54 ZAPI AC controller offers better protection against water & dust ingression
• High-quality AMP connectors and durable electrical harnesses
• Efficient heat dissipating design protects components from overheating

Safe operation

• Low voltage protection system automatically limit travel speed and disrupt lift functions when the battery level hits 20% or below
• Auto travel speed reduction to half speed when exceeding the free lift height
• Down safety valve limit sudden forks drop upon hydraulics failure
• Standard clear mast guard keeps the operator protected against any direct splashed impact
• Full electromagnetic brakes with anti-rollback function
• Low bottom frame design keeps the operator foot out of the undercarriage
• Optional cold store application available to work at -20 degree Celsius environment

‘Not available with proportional lift valve fitting
