NTT30EAR/NTT45EAR

Description

SWIFT tow SWIFT advance

POWERED to meet expectations

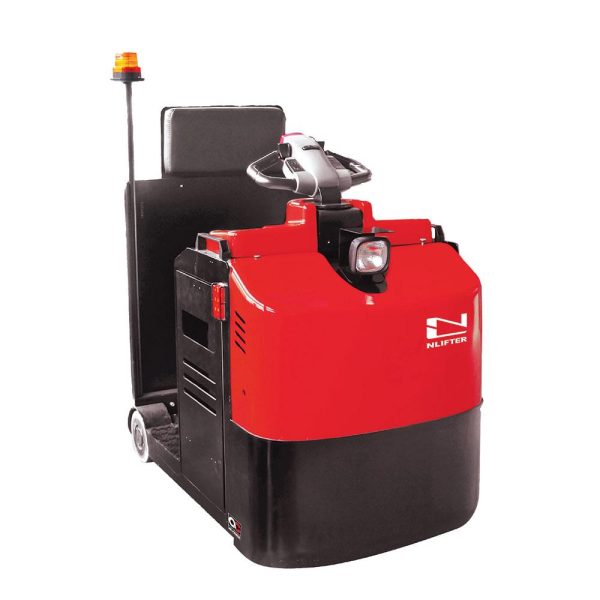

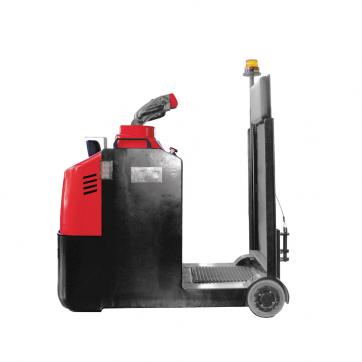

Available in two different chassis, 3.0T & 4.5T, the new NTT-EAR series is a handy solution to accomplish on-tow taskings easily that can last through a cycle of shift hours and cruise over a span of distance at a maximum speed of 71un/hr.

The NTT-EAR series is equipped with a standard electric power steering lever, and it feels so light that the operator could easily control the steering with just one hand. The opera- tor compartment is spacious, and the operator can adjust himself easily to stay comfort- able while operating the truck.

With a combination of both short turning radius and its exclusive quick release tow pin that is conveniently positioned behind the operator backrest, the operator may just turn his back, reverse and aim for the tow eye without needing to walk out of the truck at all.

High Performance AC drive system

• Smooth travel speed control up to 7km/hr
• Competitive and powerful rated AC drive motor performance

Smooth Controls

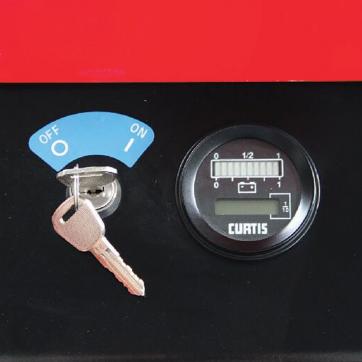

• Standard Battery discharge indicator (*Indicates operating hours, battery level and error code)
• Electric power steering with short control handle offers effortless steering to relieve the operator from fatigue

Improved Reliability & Maintenan

• Low center gravity platform with ample standing space
• Cushioned platform and backrest relieves physique stress on the operator
• Quick release tow pins facilitate unlocking & locking of the tow hook easily
• Removable one-piece power head cover allows for easy maintenance
• Robust & maintenance free AC traction motor allows smooth travel transition from point to point
• IP54 ZAPI AC controller offers better protection against water & dust ingression
• High-quality AMP connectors and durable electrical harnesses

Safe for operating

• Safety foot switch ensures operator to adopt a safe standing position before activating the truck
• Automatic travel speed reduction when the truck maneuver in a curved path
• Electromagnetic braking system keeps the truck steady on-ramp movement and prevents it from rolling backward

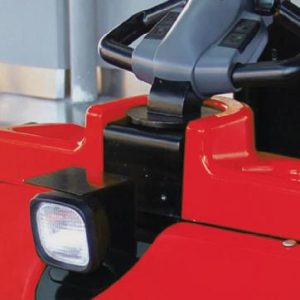

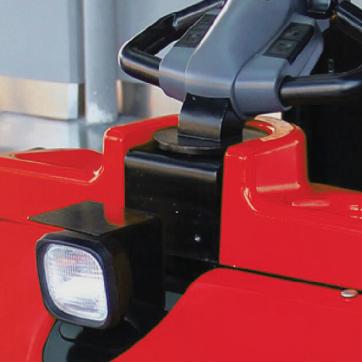

• Standard headlights to ensure sufficient forward illumination at all times
• Standard side battery change system facilitates safer battery change procedures

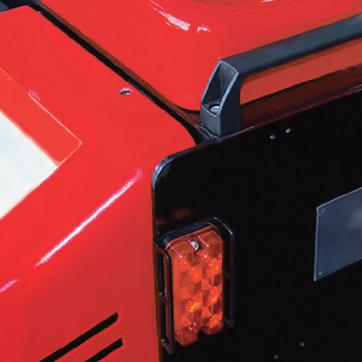

• Standard signal lights to indicate travel directions to keep nearby pedestrians on alert

Only applicable for NTT30EAR
